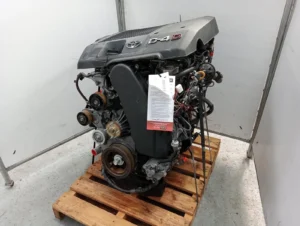

Toyota 1KD-FTV 3.0 D-4D Engine (or 3.0 D-4D engine) appeared in 2000. The engine was available first for the Toyota 120-Series LandCruiser Prado and later for the 150-Series. Also, this 3.0-liter diesel was offered for installation in the Toyota Mk.7 Hilux, Toyota Mk.5 HiAce, and Toyota Hilux Surf (Toyota 4Runner). The 1KD engines ousted the Toyota KZ engine series. But now the 3.0-liter version is rapidly being replaced by the new Toyota GD engine – the 2.8L 1GD-FTV.

The 1KD-FTV engine has a cast iron cylinder block with two counter-rotating balance shafts driven by a gear on a crankshaft. The engine block doesn’t have liners. Inside the cylinder block, there is a forged crankshaft with eight weights and five main journals. The crankshaft pulley has a torsional rubber damper to reduce noise and vibration. Also, the engine was equipped with the high-strength connecting rods and aluminum alloy pistons with resin-coated skirts. The pistons are cooled and lubricated with motor oil sprayed by oil jets at the bottom of the engine block.

The aluminum 16-valve DOHC cylinder head is mounted on top of the engine block. There is a steel-laminate type head gasket between them. The engine has a timing belt for driving the intake camshaft only. The intake camshaft drives the exhaust camshaft by a gear. Camshafts are covered by a plastic head cover. As was noted earlier, the head has 16 valves or four valves per cylinder (two intake and two exhaust valves). Valves are actuated by the shim-less valve solid lifters/tappets (the adjustment requires replacement them by new). The intake valve diameter is a 32.2 mm; the exhaust valve diameter is a 27.8 mm. When the engine is cold, the valve clearance for the intake valves must be a 0.2-0.3 mm; for the exhaust valves – 0.35-0.45 mm.

The 1KD engine is equipped with the ‘Direct Injection 4-Stroke Common Rail Diesel Engine System’ or Toyota’s D-4D. The Common Rail system is an electronically controlled direct fuel injection system for diesel engines. The common-rail pressure ranges from 30 to 160 MPa for the 1KD-FTV engine. The fuel is injected into the cylinders by the eight-hole type injectors. The air for 3.0 D-4D engine is supplied by a variable geometry turbocharger Toyota CT16V. The max boost is 16 Psi (1.1 Bar). The compressed air before the intake manifold goes into the air-to-air type intercooler mounted on top of the engine.

All engines have an oxidation catalytic converter lowered the emissions. Started from Euro 3 versions (European emission standard), the engines were equipped with water-cooled EGR system (exhaust gas recirculation).

Engine Specs

Manufacturer

Toyota Motor Corporation

Production years

2000-2024

Cylinder block material

Cast Iron

Cylinder head material

Aluminum

Fuel type

Diesel

Fuel system

Common rail direct injection

Configuration

Inline

Number of cylinders

4

Valves per cylinder

4

Valvetrain layout

DOHC

Bore, mm

96.0 mm (3.78 in)

Stroke, mm

103.0 mm (4.05 in)

Displacement, cc

2,982 cc (182 cu in)

Type of internal combustion engine

Four-stroke, turbocharged

Compression Ratio

17.9:1

Power, hp

108 hp (80 kW)/3,000
134 hp (100 kW)/3,400
161 hp (120 kW)/3,400
167 hp (126 kW)/3,600
170 hp (127 kW)/3,400

Torque, lb ft

211 lb-ft (286 Nm)/1200-1600
221 lb ft (300 Nm)/1200-2400
253 lb ft (343 Nm)/1400-3200
253 lb ft (343 Nm)/1400-3400
302 lb ft (410 Nm)/1600-2800

Engine weight

570 lbs (260 kg)

Firing order

1-3-4-2

Engine oil capacity, liter

7.0/6.7 (0.3 – oil filter)

Engine oil weight

5W-30Oil recommendations and capacity may vary depending on the car model, year, and market. Please check the service manual specific to your vehicle!

Oil change interval, mile

10,000 (15,000 km) /12 month

Cars with this engine

Toyota Land Cruiser Prado 120/150, Toyota 4Runner/Hilux Surf, Toyota HiAce, Toyota Hilux
