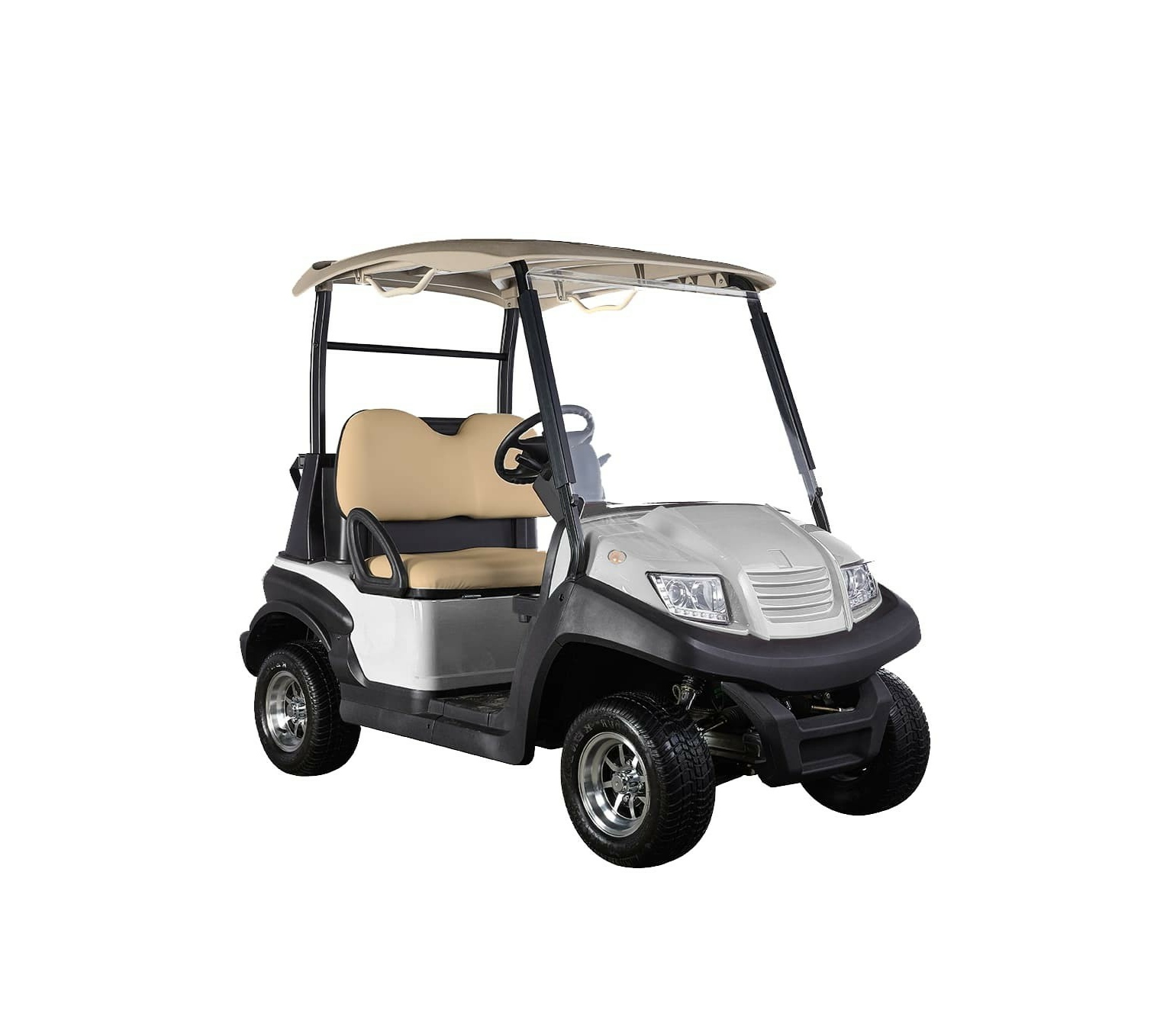

2-Seater Standard Electric Golf Cart

Battery	Maintenance free, 48V/135AH
Motor Power	3.8KW Motor (AC motor)
Controller	Zapi ACE0
Passenger capacity	2
Range (loaded) based on flat road at a speed of 20km/h (km)	>60–100 depends on battery setup
Max. speed	21-40 depends on motor and rear axle setup
Minimum turning radius (m)	3
Max. climbing ability	25%
Max. loading weight	270kgs
Overall dimensions (mm)	2410x1180x1800
Body and Frame
Frame	Aluminum Alloy Beam
Body	PP plastic front body + PP plastic rear body
Roof	injected plastic
Windshield	one-piece Organic glass
Large Seats:	Rebond seat + artificial leather, formed armrest, plastic seat bottom
Floor	rubber
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Beverage holders	4 cups drink holders
Electric system
Lighting system and horn	2 headlights (with H/L beam), 2 front turn signals, Front LED position light, 2 LED taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V/36V to 12V), horn.
Charger	Eagle off board charger, 220v/60hz
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
Accelerator	Stepless speed change
Suspension system	Front Independent Suspension and rear taper leaf spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated
Wheel & Tyre	10×6 Alumimum wheel & 205/50-10 4PR

SPECIFICATIONS
