In the world of marine navigation, having reliable radar can be the difference between a smooth sail and a dangerous voyage. Garmin, a leader in GPS and marine technology, has raised the bar with the Garmin GMR Fantom 256 radar system. Designed for professional captains and passionate boaters alike, this radar combines state-of-the-art technology with unparalleled power.
$7,800.00

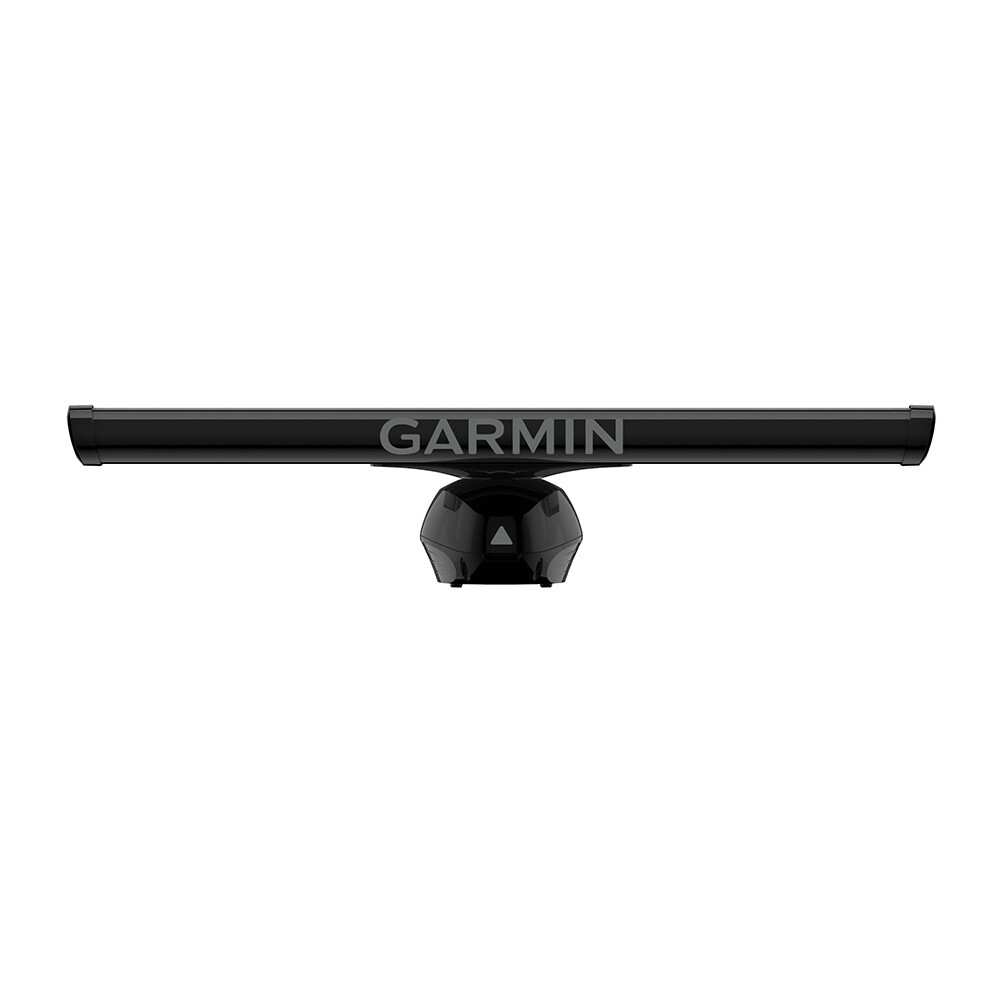

Garmin GMR Fantom 256 Antenna and Pedestal, In the world of marine navigation, having reliable radar can be the difference between a smooth sail and a dangerous voyage. Garmin, a leader in GPS and marine technology, has raised the bar with the Garmin GMR Fantom 256 radar system. Designed for professional captains and passionate boaters alike, this radar combines state-of-the-art technology with unparalleled power.
This article provides an in-depth look at the Garmin GMR Fantom 256 antenna and pedestal, showcasing its features, advantages, and use cases to help you determine if it’s the right fit for your vessel.
The Garmin GMR Fantom 256 is one of the most powerful open-array radar systems Garmin has developed. It features 250 watts of solid-state output power and a 96 nautical mile range. This radar is designed for serious offshore applications where detecting long-range weather systems, land masses, and vessels is critical.
This radar system includes two primary components:
The Antenna (Open-Array): Available in 4-foot or 6-foot versions.
The Pedestal: A robust base that houses the radar’s power supply and electronics.
Together, they deliver unmatched performance in all weather conditions.
Here are the top features that make the Garmin GMR Fantom 256 stand out:
250-watt solid-state output power
96 nautical mile detection range
MotionScope™ Doppler technology
Pulse compression technology
Target size control for better clarity
Echo trails and guard zones
MARPA target tracking (up to 30 targets)
Dual range capability (simultaneous close and long range)
Low power consumption for a high-power system
Garmin’s proprietary MotionScope™ Doppler radar technology is a game-changer for marine safety. It detects and highlights moving targets in different colors based on their direction — red for approaching targets and green for receding ones. This visual feedback enables boaters to identify potential hazards quickly, such as incoming vessels or storm fronts.
Key advantages:
Enhanced situational awareness
Real-time tracking of moving targets
Color-coded feedback simplifies decision-making
The GMR Fantom 256 gives users control over target size adjustment, allowing for a clearer view of weak returns or stronger focus on larger vessels. This ensures small but crucial targets like buoys or small boats aren’t missed.
Echo Trails leave a visual trail of movement behind objects on the radar display. This helps mariners:
Understand direction and speed
Differentiate between stationary and moving targets
Navigate busy waterways more effectively
One standout feature of the GMR Fantom 256 is dual-range radar capability. This allows boaters to view both short and long-range radar images simultaneously on one screen or multiple displays.
Benefits:
Monitor nearby vessels while tracking distant weather
Enhanced situational awareness
No need to toggle between ranges — both are visible concurrently
This is especially useful for large vessels or yachts that need to navigate busy marinas and open seas simultaneously.
Installing the GMR Fantom 256 requires:
A compatible Garmin chartplotter
Garmin Marine Network connection
Adequate pedestal mounting area on the boat’s mast or arch
The system is compatible with a wide range of Garmin MFDs (Multi-Function Displays) including:
GPSMAP® 8400/8600 series
GPSMAP® 7×3/9×3/12×3 series
GPSMAP® 10×2/12×2 series
The radar integrates seamlessly into the Garmin marine ecosystem, ensuring data synchronization, overlays, and ease of operation.
The pedestal of the Garmin GMR Fantom 256 is built to deliver continuous power while withstanding the harshest marine conditions. Key attributes include:
Rugged housing with corrosion-resistant materials
Solid-state power amplifier for low maintenance
Efficient cooling system to prevent overheating
Power-efficient design suitable for extended use without draining boat batteries
The pedestal is the brain of the system, processing data and sending clean signals to the antenna for accurate radar imagery.
The Garmin GMR Fantom 256 is designed for:
Track flocks of birds (often indicating fish schools)
Monitor long-distance vessels or storms
Navigate through fog or nighttime conditions
Use dual range to monitor close and distant hazards
Increase safety during shipping operations
Track multiple moving targets simultaneously with MARPA
Monitor and intercept vessels
Identify fast-approaching crafts
| Feature | GMR Fantom 256 | GMR Fantom 124 | GMR 1224 xHD2 |
|---|---|---|---|
| Output Power | 250W | 120W | 12kW |
| Range | 96 NM | 72 NM | 72 NM |
| Doppler | Yes | Yes | No |
| Dual Range | Yes | Yes | No |
| Array Size Options | 4 ft / 6 ft | 4 ft / 6 ft | 4 ft / 6 ft |
| Target Tracking | MARPA (30 targets) | MARPA (30 targets) | MARPA (10 targets) |
While the GMR Fantom 124 is still impressive, the GMR Fantom 256 nearly doubles the output power, making it ideal for larger vessels and challenging conditions.
Exceptional long-range detection
Doppler radar for movement awareness
Seamless integration with Garmin marine systems
Low maintenance with solid-state design
Dual range support improves navigation
High cost (premium product)
Requires compatible Garmin chartplotter
May be overkill for small recreational boats
To keep your Garmin GMR Fantom 256 in peak condition:
Inspect mounting hardware every 6 months
Clean the radar dome or array with fresh water and mild soap
Check connections for corrosion or wear
Update firmware via Garmin Express or MFD
Store properly if the vessel is docked for extended periods
Regular maintenance ensures radar accuracy and system longevity.
A: Up to 96 nautical miles, depending on conditions and antenna size.
A: Yes, it features Garmin’s proprietary MotionScope™ Doppler technology.
A: Yes, it supports MARPA tracking of up to 30 targets.
A: No, it’s designed to work specifically with Garmin Marine Network systems.
A: The 6’ antenna offers narrower beamwidth for better resolution and range compared to the 4’ version.
