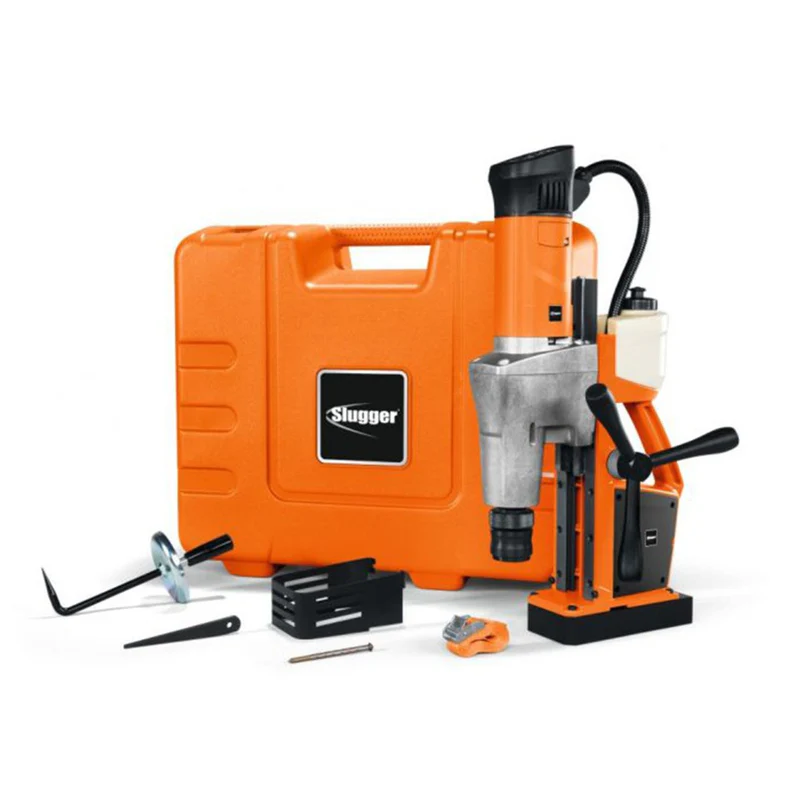

FEIN JCM 200 U

The drill includes many useful features such as an MT3 tool holder, forward/reverse two-speed gearbox, integrated coolant tank, right or left feed handle placement, and an electronic variable speed control. The tool-free Weldon Quick-in chuck accepts all 3/4 straight shank annular cutters. The drill comes in a heavy-duty storage case for safe, easy transport to and from the job site.

• Mag Drill unit up to 2 [50] in[mm]
• JCM 200 U
• Universal with 2-speed gearbox and outstanding functionality for flexible operation in the workshop and on the construction site.

Benefits:

• Compact with high functionality for universal use on the construction site and in the workshop.
• Simple and error-proof control concept in the operator’s field of view.
• Double drill motor guides enable use of the longest annular cutters.
• Reversible
• Electronic speed control.
• High-power motor with stable speed.
• High magnetic holding force.
• Convenient magnetic holding force display.
• Integrated coolant tank.
• Hand feed wheel can be mounted on either side.
• MT3 interface.

Technical Data:

• Power consumption: 1,200 W
• Power output: 610 W
• Load speed: 1st gear: 130 – 260 rpm
• Load speed: 2nd gear: 260 – 520 rpm
• Tool mount: MT 3
• Carbide cutter max. dia.: 2 [50] in[mm]
• HSS cutter max. dia.: 1-5/8 [40] in[mm]
• Cutter max. drilling depth: 2 [50] in[mm]
• Twist drill max. dia.: 7/8 [23] in[mm]
• Tapping: M 16
• Max. countersinking dia.: 2 [50] in[mm]
• Reaming max. dia.: 7/8 [23] in[mm]
• Cutter holder: 3/4″ Weldon
• Cutter change: tool-free
• Stroke: 5-11/16 [145] in[mm]
• Total stroke range: 12-3/8 [315] in[mm]
• Magnetic holding force: 2810 [12,500] lbs[N]
• Magnetic base dimensions: 7-11/16 [195] x 3-9/16 [90] in[mm]
• Cable with plug: 13.1 [4] ft[m]
• Weight: 31.31 [14.20] lbs[kg]

Includes:

• 1 coolant tank
• 1 safety strap
• 1 chip hook
• 1 pilot pin 4 1/8 in (105 mm)
• 1 chip guard
• 1 drift
• 1 case

Warranty:

3 year manufacturer’s warranty
